Vutek GS ASM, Jetpack GS/GSR Grey UNCOA QD CONN - 45095093

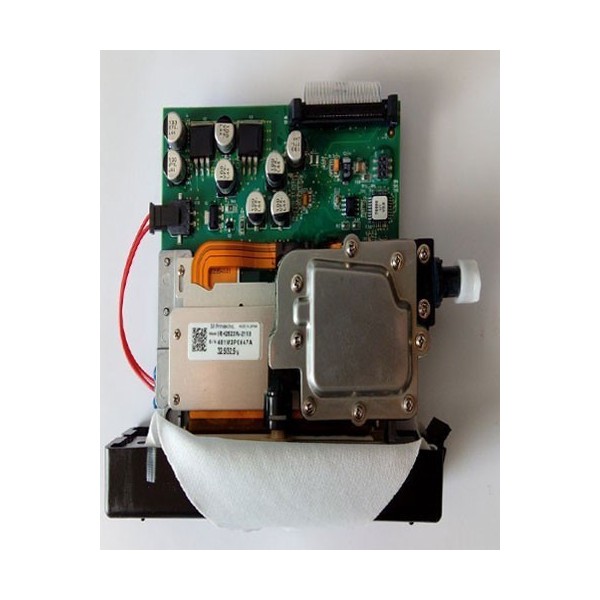

This ASM, Jetpack UV Print Head Grey Scale Platinum is suitable for VUTEk GS-series printers. This printhead includes the heating element and the smoothing electronic board.

  • Security policy Security policy
  • Delivery policy Delivery policy
  • Return policy Return policy
$1,199.00
Tax excluded
Quantity:

This Vutek GS ASM , Jetpack UV Print Head Grey Scale Platinum is suitable for VUTEk GS-series printers. This printhead includes the heating element and the smoothing electronic board.

The jetpack also includes a set of two Jet Clamps (part number 45083572 / 45093679 / 45095093)  and screws to install and aligne the printheads on the Vutek printer. This is the original VUTEk part (number replacing numbers 45083572 / 45093679 / 45095093 / 45093679 / 45084621). This is the latest upgraded head that comes with the connector.

Technical Specifications
- Drop size: 12pl
- Grey Scale levels: 7
- Nozzles: 508 nozzles
- Firing Frequency: 18 kHz
- Active Print Width: 72 mm
- Damper: integrated, quick dry break connector
- Ink type: UV
