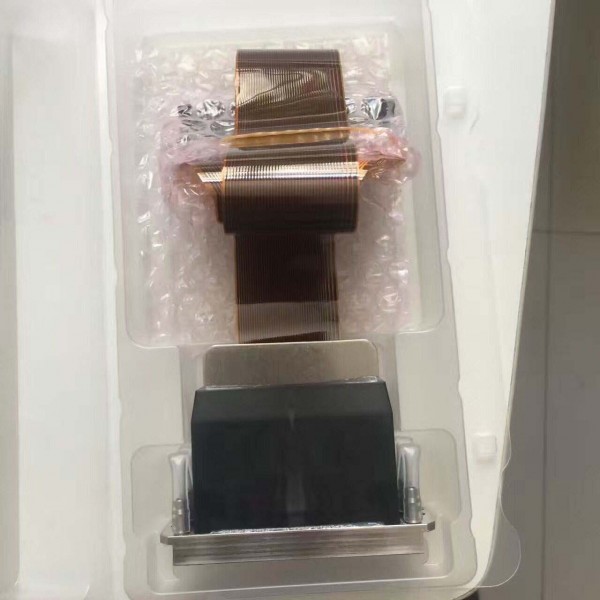

Mimaki SWJ 320 S4 Printhead

This GEN5 (MH5420/5440) Assy Packaging is suitable for Mimaki SWJ-320 printers. This is the original Mimaki part (number M012639). This packaging contains the assembly including tubes, valves, ink connectors and brackets.

  • Security policy Security policy
  • Delivery policy Delivery policy
  • Return policy Return policy
$1,100.00
Tax excluded
Quantity:

Product Specifications

- Dimensions: 89 x 25 x 69 mm (excluding cables)
- Head materials: SST, Nickel alloy and Epoxy Adhesive
- Nozzle plate surface: Coated SST
- Number of nozzles: 4 x 320 nozzles
- Nozzle spacing: 0.1693 mm
- Nozzle density: up to 600 npi
- Piezo yype: D33 Stacked PZT
- Temperature control: Integrated Heater and Thermistor
- Operator temperature range: Up to 80° C
- Native drop volume: 7 pl
- Drop volume range: 7 - 35 pl
- Drop velocity: 7 m/s
- Jetting frequency: Up to 60 kHZ
- Life: 100 billion actuations per nozzle
