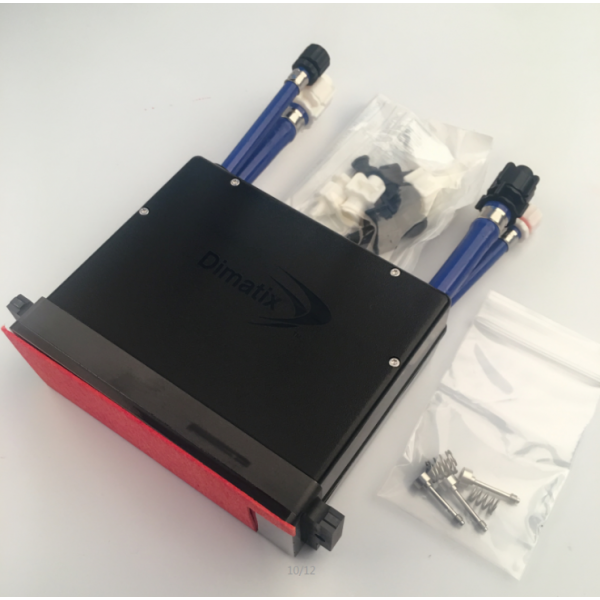

It uses field proven materials to deliver consistent output over a long service life with continuous ink recirculation and single color operation at 400 dots-per-inch. Equipped with a single replaceable metal nozzle plate that is designed to withstand abrasion and resist damage. The unit is compatible with solvent, UV-curable and aqueous ink formulations.

Each SG1024/SA printhead has 1024 independent channels arranged in 8 rows in a single nozzle plate for resolutions up to 400 dpi. All 1024 nozzles can be fired.

Features

• Robust and repairable construction
• Drop size range: 12pl (50 Hz) - 33pl (18Hz)
• 1024 individually addressable jets
• Incorporate VersaDrop™ binary and grayscale jetting
• Continuous ink recirculation with RediJet™
• Removable/replaceable collar mounted, coated metal nozzle plate
